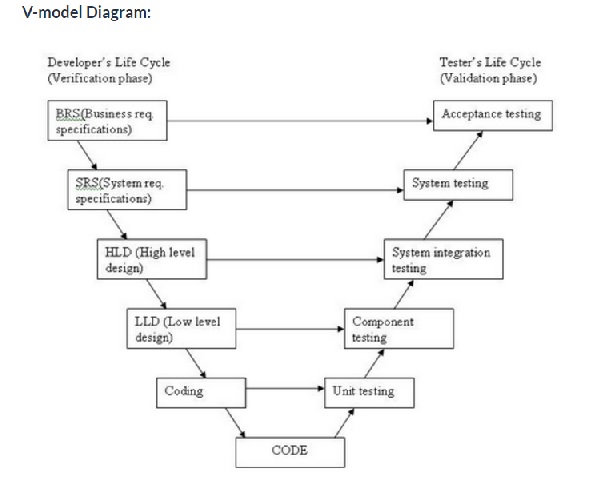

V-model is SDLC model where process execution
takes place in a sequential order in V-shape hence it named as v-model. It is
same as waterfall model where each phase must complete and its output will be
the input for next phase. In this model testing team will involve at the stage
of requirement only. Testing of the product is planned along with a
corresponding development phase. V-model is also known as Verification and
Validation model.
Requirements:
BRS (Business Requirement Specifications) /
CRS (Customer Requirement Specification) this document is prepared by business
analyst / product analyst and SRS (System Requirement Specification) is
prepared by project manager or team lead.
At this stage development and testing team
will review the CRS for any missing requirement and prepare the required test
document, they are User Accepting Test plan and User Accepting Test case
document.
At this stage they will review the SRS and
prepare the required test document, they are System Test plan and System Test
case document.
At this stage they will review the HLD and
prepare the required test document, they are System Integration Test plan and
System Integration Test case document.
At this stage they will review the LLD and
prepare the required test document, they are Component Test plan and Component
Test case document.
At this stage developer starts coding and
before handover application to testing team they will do one round of testing
is known as unit testing.
Unit testing / Whitebox testing / Glassbox
testing/ Openbox testing:
This testing is done by the developers before
handover the application to the testing team they check each and every line of
code written by them.
Component testing / Functional testing:
Testing each and every components of module
independently is called functional testing.
System Integration Testing:
Testing the data flow/interface between the
modules is known as system integration testing.
System testing:
checking the end to end flow of an
application i.e. navigate through all the modules and check, if the application
is working as a whole or not.
User Acceptance Testing (UAT):
It is a testing done by the customer before
accepting the product.
The high-level design (HLD): It is a blue
print of the application,
it provides overview of solution, system,
platform and process. It contains modules in the form of flow diagram.
The low-level design (LLD):
It is also blue print where it provides
detail description of flow diagram which has modules with its components also.
The implementation:
In this phase, coding takes place. After
completion of coding, the path of execution continues up the right side of the
V where the test plans developed at the beginning are come to use now.
Coding:
this is the phase where developers convert
module design into code.
When to use the V-model:
- Whenever
the project is small to medium sized and with clearly defined
requirements.
- We
use v-model in the case of complex project.
Advantages of V-model:
- In
this module testing activities begins at very early stage i.e. at the
stage of requirement. Hence time consumption is less and also higher
chance of success.
- Simple
and easy to use.
- Requirement
review is existing hence there is no the downward flow of the defects.
- Parallel
deliverables are existing i.e. review and testing
- Test
documents can be re-used
- Requirement
changes are allowed
- Due
to review process that is defects are found at early stage.
Disadvantages of V-model:
- It
is costlier
- Lots
of re-work will be there, if customer ask for changes
- If
any modification is needed in midway, then the test documents and
requirement documents has to be updated.
- It
is not much flexible for changes
